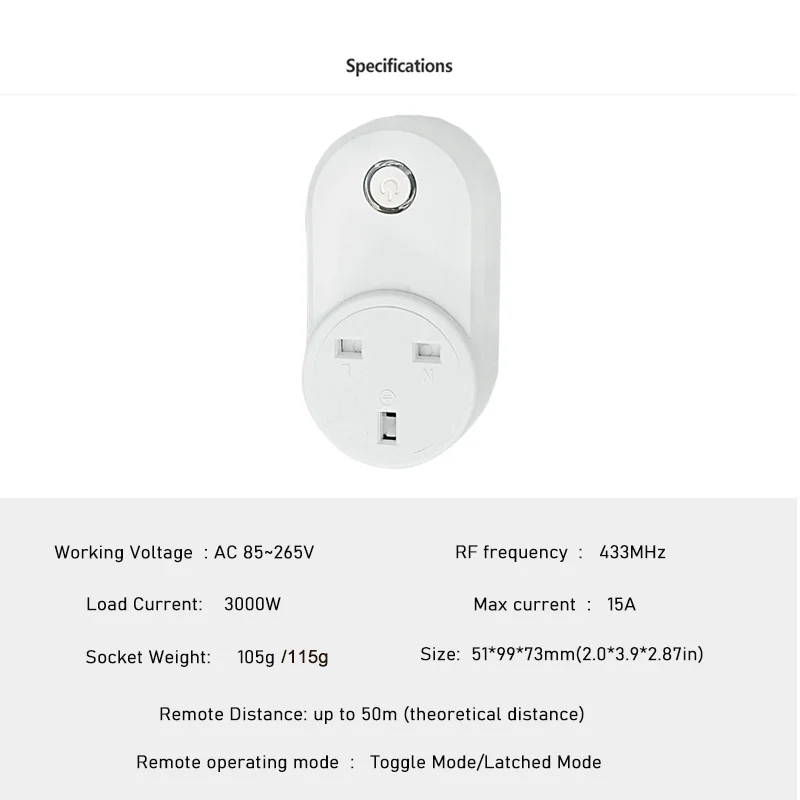

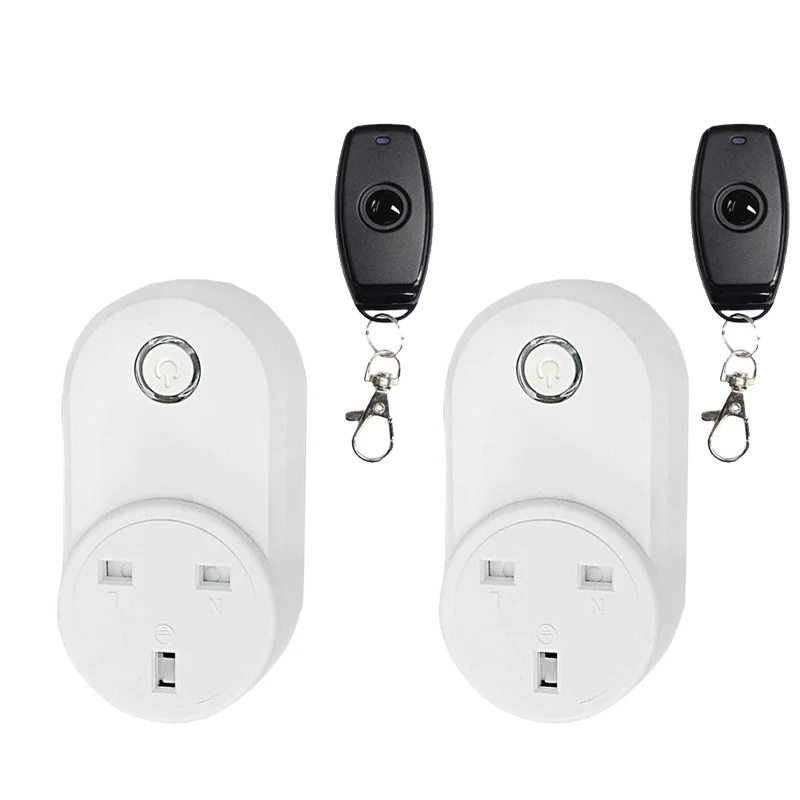

• Working Voltage  : AC 85~265V

• Max current  :  15A

• Load Current :  3000W

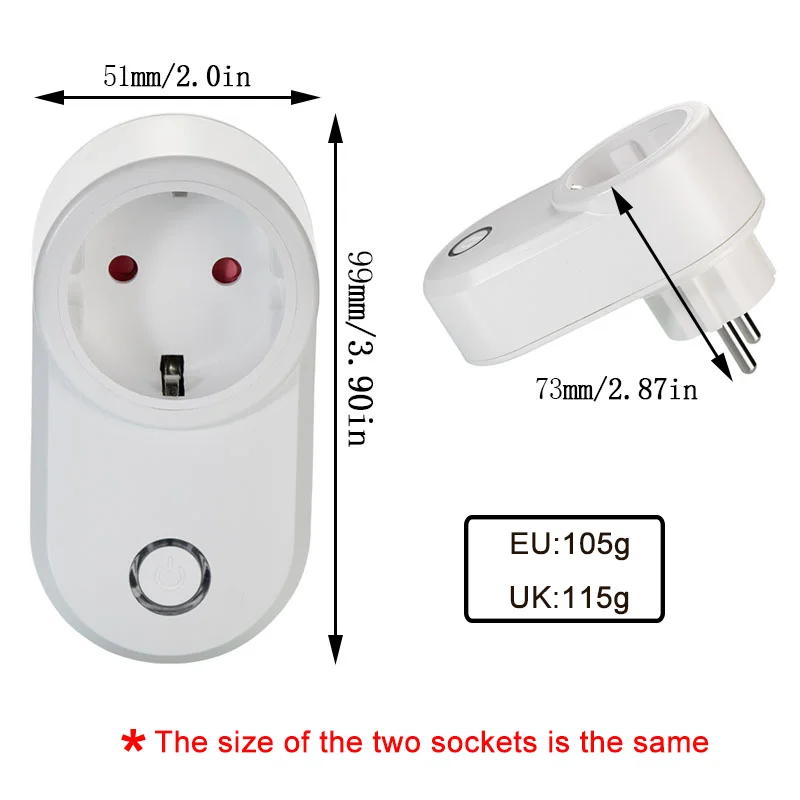

• Size:  51*99*73mm(2.0*3.9*2.87in)

• Weight :  105g

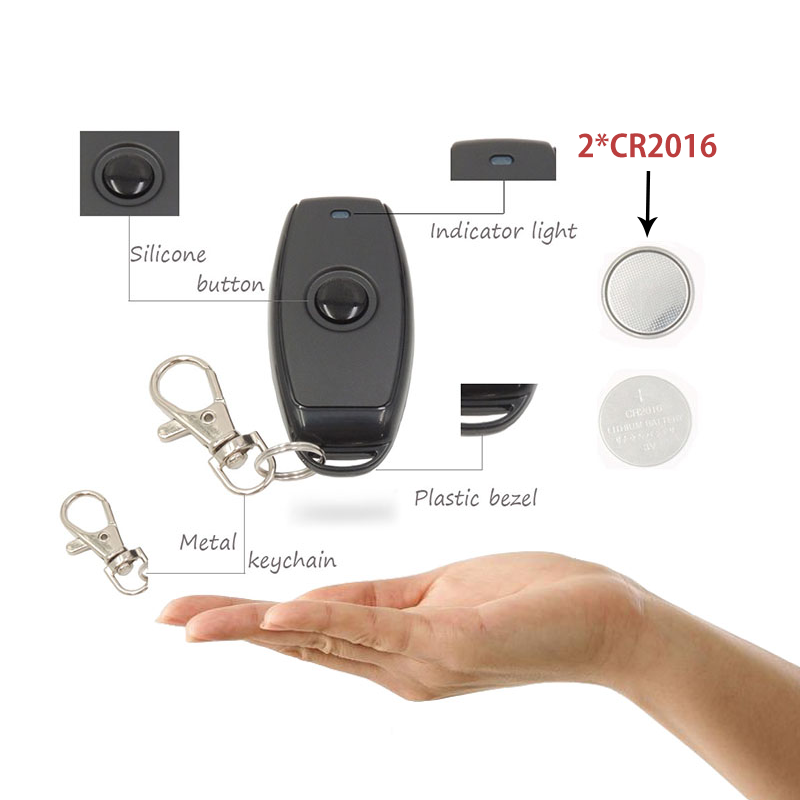

• Remote Control Battery :  2*CR2032(Include)

• RF frequency  :  433MHz

• Working temperature  :  -30~+80 Celsius

• Receiving Sensitivity  :  >97dbm

• Amount of storage remote controls  :  20 pieces

• Support encoding  :  1527 Leaning code /2262 fixed code

• RF Operating mode  :  ASK superheterodyne wireless reception

• Receiving range  :  Open space is more than 30 meters

• Remote operating mode  : Toggle Mode/Latched Mode

Use: Press button Once-> The Home Appliances OR Light will turn ON;
Press button Once Again ->The Home Appliances OR Light will turn OFF.

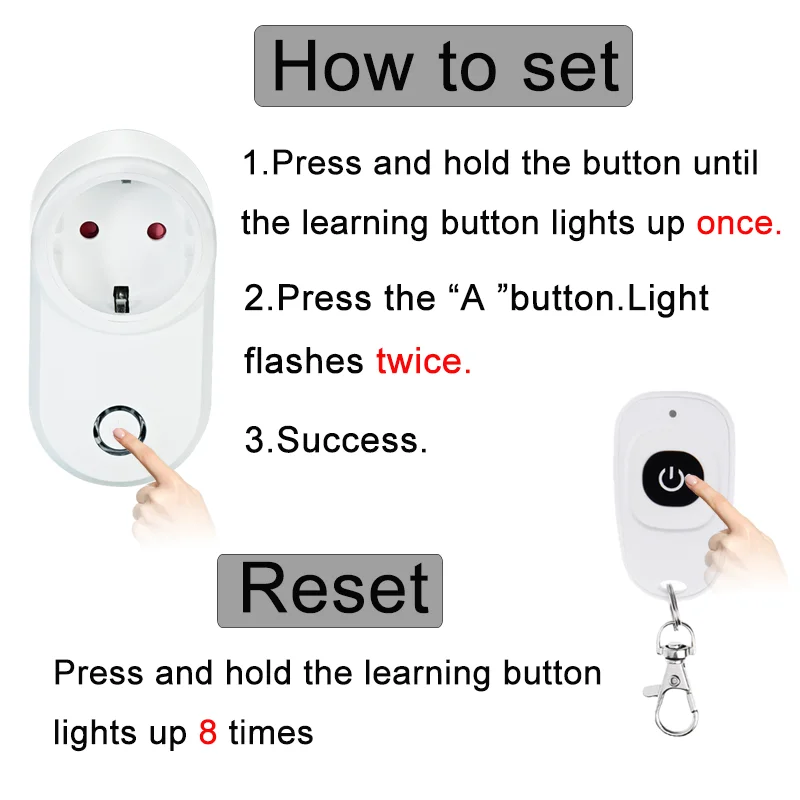

Setting: 1.According to the picture ,Press and hold the learning button until the indicator flashing twice .
                   2.Press the  button once, the indicator flashing twice.
3.Press the button once again, the indicator flashing twice.
                   4.Success

How to clear the signal
Press and hold the learning button until the indicator flashing 8 Times(about  7 seconds ).
