Description

SPECIFICATIONS

Applied Fast Charge Protocols: USB PD,Huawei Quick Charge

Brand Name: WUDUNG

Certification: RoHs,CE

Choice: yes

Compatiblity 1: Fast Charger For MacBook Air M1 M2 Pro 13 14 16 inch MiNI series

Compatiblity 2: Fast Charger For iPhone 16 15 14 13 12 11 X XR XS Pro Max Series

Compatiblity 3: Fast Charger For Huawei Matebook 14 13 X Pro D14 D15 E Series

Compatiblity 4: Fast Charger For XiaoMI Pro15.6, Air12.5/13.3 Redmi series

Compatiblity 5: Fast Charger For Samsung Galaxy S24 S23 S22 S21 S20 Ultra Series

Compatiblity 6: Fast Charger For Dell XPS 17, XPS 15 Series

Feature: USB Desktop Fast Charger

GaN: Yes

Hign-concerned Chemical: None

Input: AC 100-240V,50/60Hz,2.5A(Max)

Item: Multi-Port Desktop Charger Station

Max. Output Power: 100W

Model Number: 320W USB Charger

Origin: Mainland China

Output Interface: USB,Type C,4 A Ports,3 C Ports+

Power Source: A.C. Source

Total Output: 155W (MAX)

Type: Desktop

USB-A1/A2/A3/A4: 5V3A/9V2A/12V1.5A/20V1.5A 30W(Max)

USB-C1: 5V3A/9V3A/12V3A/15V3A/20V5A 100W(Max)

USB-C2/C3: 5V3A/9V3A/12V3A/15V3A/20V3.25A 65W(Max)

FAQ:

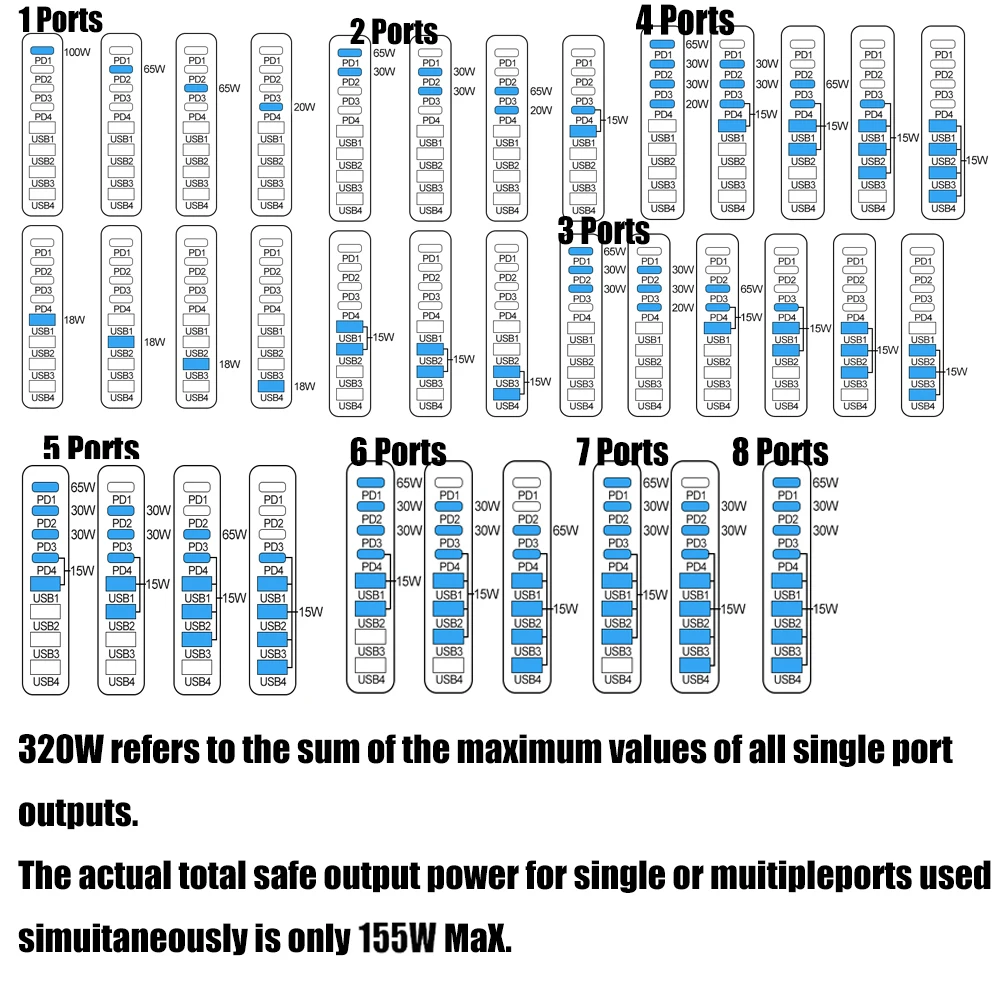

1.Why is 320W labeled? What is the actual power?

Answer: 320W is the maximum power added when all ports are used separately, and the actual total power is 155W. Recommended combination: C1(65W) for laptops + C2(30W) for tablets+C3(30W)for phone+ A1(15W) for earphone

2.Can it be used for going abroad? Will it burn out?

Answer: The 100-240V global voltage is universal, corresponding country plug needs to be purchased

3.How long is the plug cable that comes with the charger?

Answer:About 1.5 Meters.

4.Does this has 100w port for MacBook Pro 16 inch?

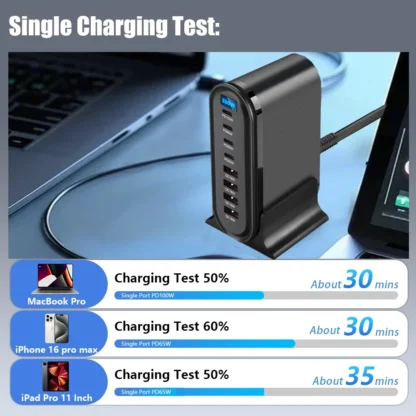

Answer:Yes, Single port charging for MacBook Pro 16 Inch can achieve full speed charging. It can also charge two laptops simultaneously, but the power will intelligently decrease. For example, C1 (65W)+C2 (30W) is suitable for charging two devices simultaneously when the device is almost fully charged and under low load.

5.Is it normal to get hot while charging?

Answer: Mild fever (≤ 50 ° C) is a normal phenomenon

Abnormal situation: If it exceeds 60 ° C or emits smoke, it should be stopped immediately

6.Why can't my phone be charged quickly?

Protocol mismatch (some phones have private fast charging protocols such as Huawei Mate 60 Pro)/Power allocation restrictions (When multiple devices are charging simultaneously, the charger will intelligently allocate and reduce power,Because some devices require high power for fast charging and therefore cannot be charged at full speed when multiple devices are charging,it is recommended to charge devices that require fast charging separately Or allocate power reasonably based on the power allocation diagram)/Cable not meeting standards (do not use non-standard cables)/Phone settings issues

Why Choose US:

8 Ports Charging – 4×USB-C + 4×USB-A, it supports charging of devices such as mobile phones, tablets,laptop and power bank at the same time, thus achieving efficiency,ideal for multi-device users.

GaN Tech – GaN Tech Achieve 50% smaller, cooler, and more efficient than traditional chargers.

Dual Laptop Charging – USB-C1 (65W) + USB-C2 (30W) for 2 laptops at once.

Support Protocols PD 3.0 QC – Compatible with Most Devices such as iPhone and Samsung.

U-Shaped base & Back heat dissipation hole design – The desktop charger is equipped with U-Shaped base,Equipped with heat dissipation holes on the back, which is more helpful for support and heat dissipation.

Safe And Professional – Multiple safety protections (over-voltage/over-current/short circuit/over-heating protection), certified by FCC/CE/RoHS.

Global voltage compatibility -100-240V, 50/60Hz, 2.5A (Max), available in four plug options: US/Europe/UK/Australia

What Devices To Charge:(Charging multiple devices will reduce power)

1.USB C1 PD100W

For MacBook Pro 16 inch(2019+) Air (M1/M2) Charging(Regular 100W USB-C To C)

For Dell XPS 13/15 For HP Spectre x360(USB Cables Supports 20V5A(100W)

For Huawei MateBook X Pro(Requires Huawei 6A cable (actual PD protocol 65W)

For iPad Pro 12.9" (M2) Charging

For Nintendo Switch OLED Charging

For HP Spectre x360 14 Inch (Regular 100W E-Marker Cable)

For ROG Ally/Steam Deck/Samsung S24 Ultra/Xiaomi 14…

Note:Some devices have a maximum power limit, and the actual power will be intelligently reduced.Please use the correct wire, otherwise it will damage the equipment and affect power

3.USB C2/3 PD65W

For MacBook Air/ThinkPad X1 Carbon(65W USB-C To C Such as Anker PowerLine III)

For iPhone 15 Pro Max/15/14/13 series Charging (MFi certified USB-C cable)

For Samsung Galaxy S23/S22 Ultra Charging (5A E-Marker cable)

For Xiaomi 13/14 Standard Edition Charging(Xiaomi Original Line)

For iPad Air 5/6/mini 6 Pro Charging (Apple original USB-C cable)

For Xiaomi Pad 6 Pro Charging(with Xiaomi original USB-C cable)

For Google Pixel 7/8 series Charging(regular USB-C cable)

For MatePad 11 Charging(Huawei Super Fast Charging Cable Actual PD 18W)

Note:It can also charge low-power and stress free devices such as Smartwatch/Fans/gaming consoles/earphones AirPods Pro 2 (Lightning cable)/cameras/power banks.Do not allow high energy consuming devices to charge at this port!!!

4.USB A1/2 QC18W

For Huawei Mate 60 Pro/50 Pro (SCP protocol, requires Huawei original 5A A to C cable)
For Xiaomi 13/14 (9V2A Xiaomi original A to C cable (3A specification))
For iPhone 12-14 series (Lightning interface, Apple MFi certified A to Lightning cable (such as Anker PowerLine II)
For Bluetooth earphones/smartwatch AirPods Pro (5W), Galaxy Watch (5W) (regular A to Lightning or A to C cable)

Note:It can also charge low-power and stress free devices such as Smartwatch/Fans/gaming consoles/earphones/cameras/power banks.Suggest using as a backup ports.

Who Needs This:

Business professionals – Business trips only require 1 charger, covering all devices

Office Users – Charging laptop + phone + tablet +Earphone with one charger.

Game player – Charging gaming laptop + controller + phone simultaneously.

Family users – Meeting the equipment needs of the whole family

Parameter:

Model: YMX-613-320W

Type: USB Multi-port Desktop Charger

Material: ABS

Operation temperatures: 0 to 50° C

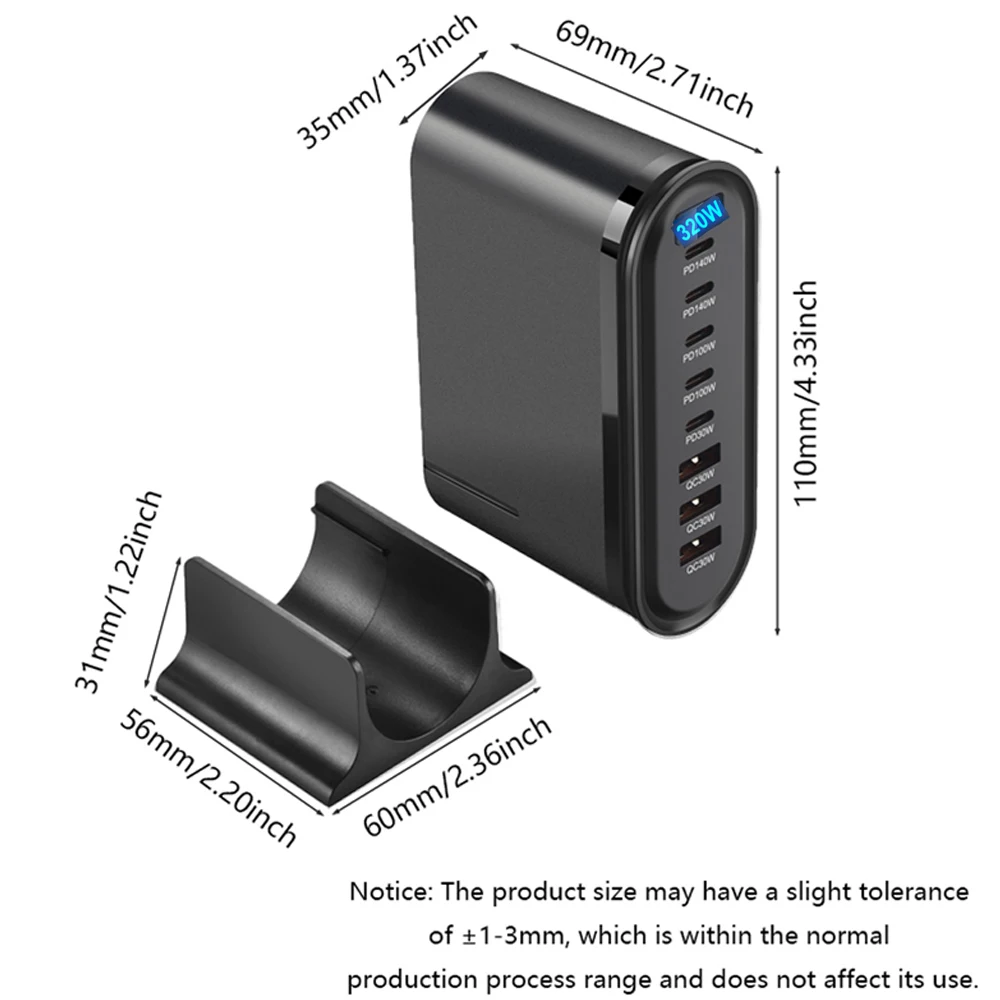

Size:11 cm/6.9 cm/3.5 cm(4.33 inch/2.71 inch/1.37 inch)

Input:AC 100-240V,50/60Hz,2.5A（Max）

Output:USB-C1:5V3A/9V3A/12V3A/15V3A/20V5A 100W(Max)

Output:USB-C2/C3/C4:5V3A/9V3A/12V3A/15V3A/20V3.25A 65W(Max)

Output:USB-A1/A2/A3/A4:5V3A/9V2A/12V1.5A/20V1.5A 30W(Max)

Output:USB-C1+USB-C2:65W+30W 95W(Max)

Output:USB-C1+USB-C2+USB-C3/USB-C4:65W+30W+30W 125W(Max)

Output:USB-C1+USB-A1/USB-A2/USB-A3/USB-A4:65W+30W 90W（Max）

Output:USB-C2+USB-C3/USB-C4+USB-A1/USB-A2/USB-A3/USB-A4:30W+30W+30W 90W(Max)

Output:USB-C3/USB-C4+USB-A1/USB-A2/USB-A3/USB-A4:65W+30W 95W（Max）

Output:USB-A1+USB-A2+USB-A3+USB-A4:5V3A 15W（Max）

Output:USB-C1+USB-C2+USB-C3/USB-C4+ USB-A1/USB-A2/USB-A3/USB-A4：65W+30W+30W+30W 155W(Max)

Total Output : 155W(Max)

What is Included:(no USB Cables)

1* GaN Charger

1*User Manual

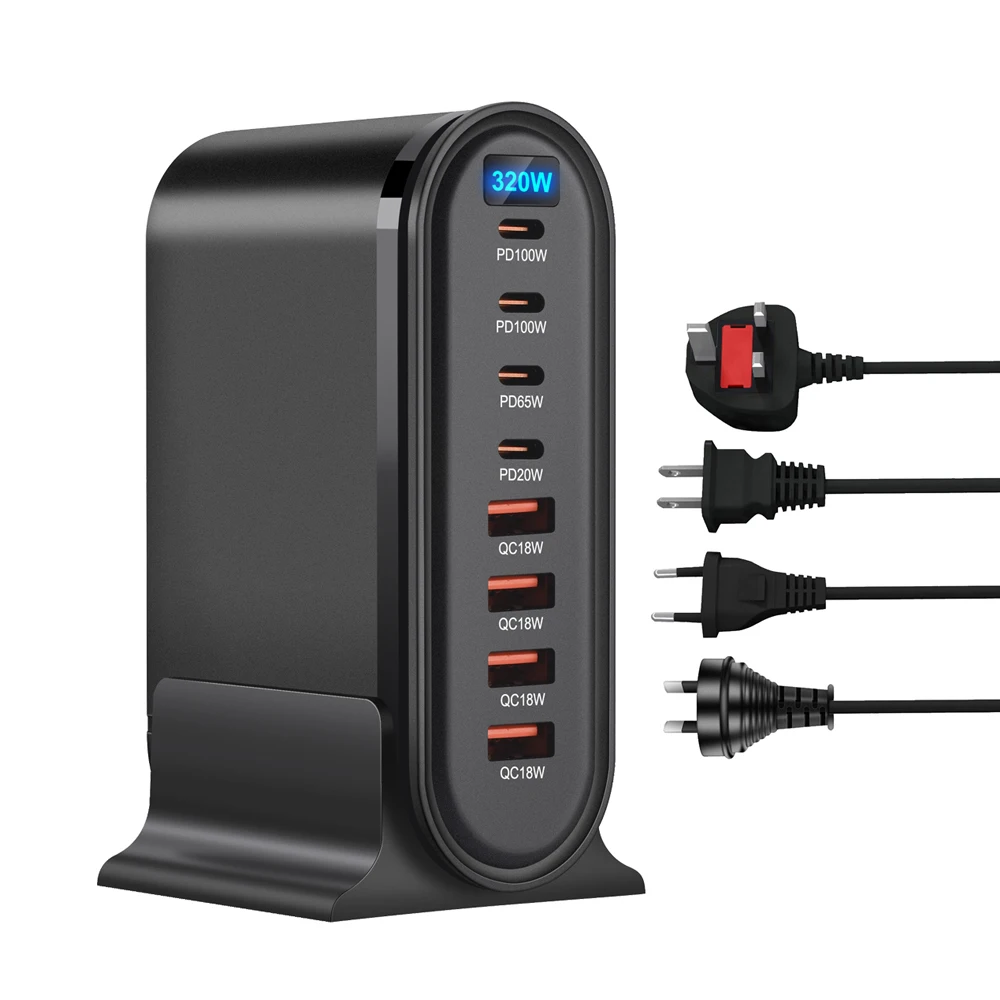

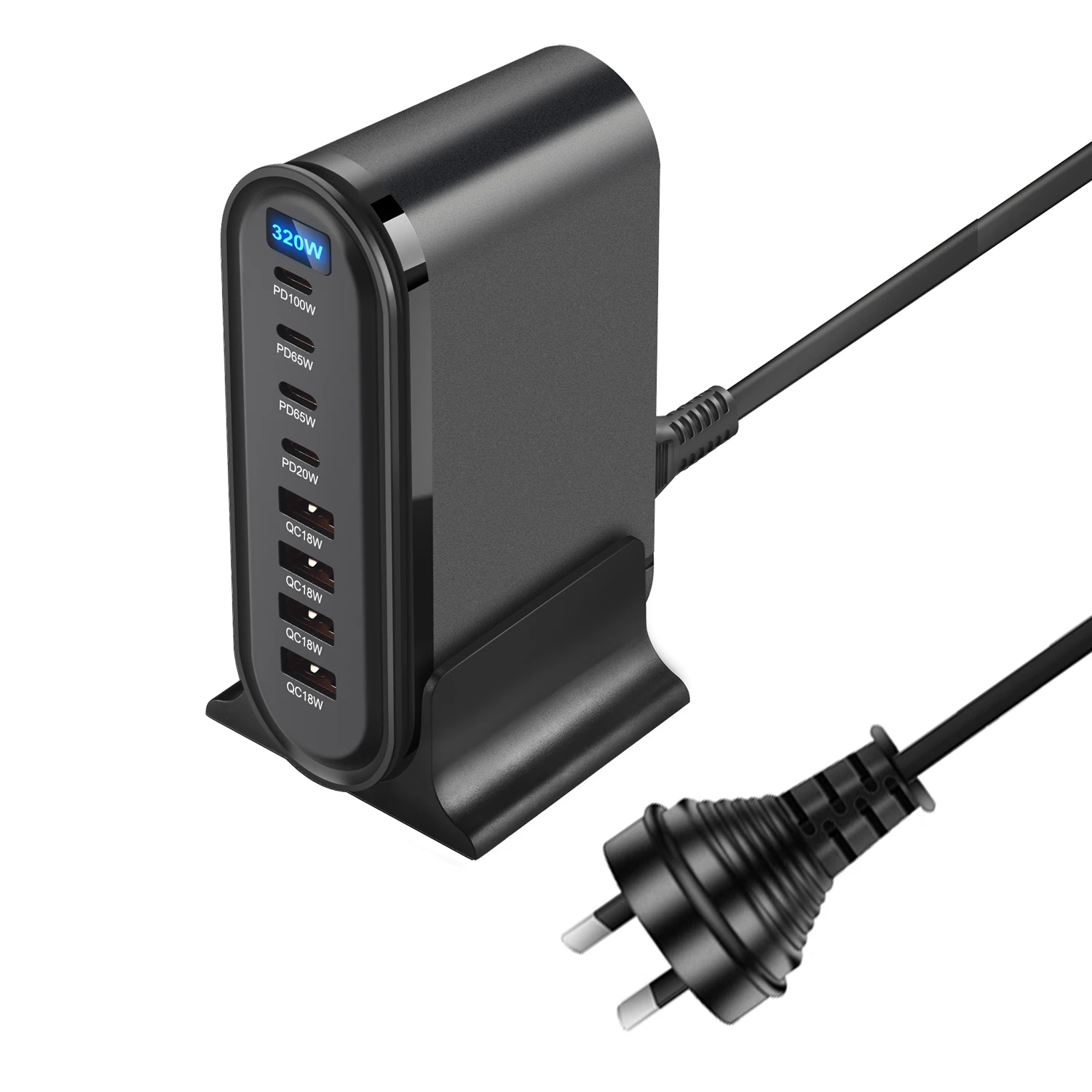

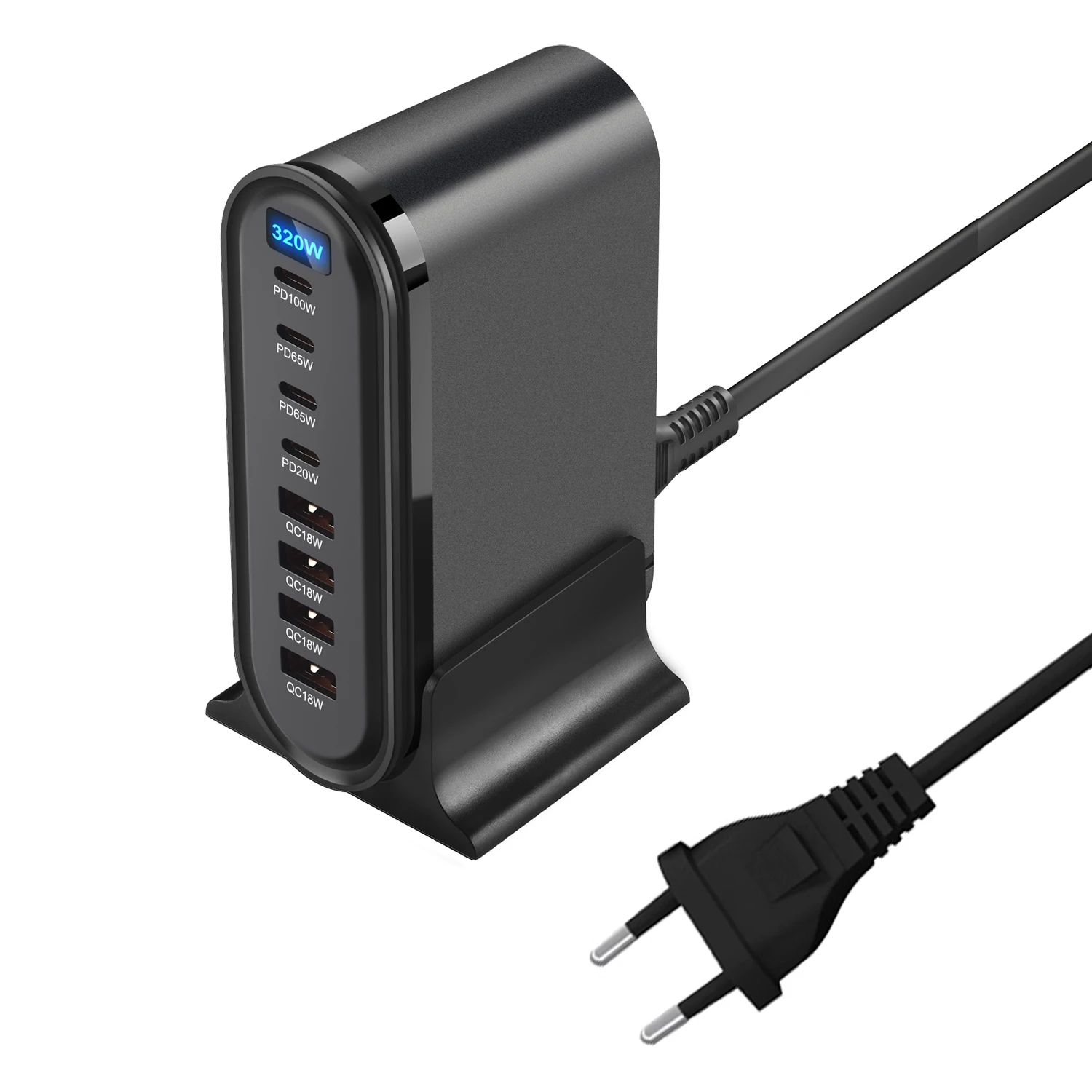

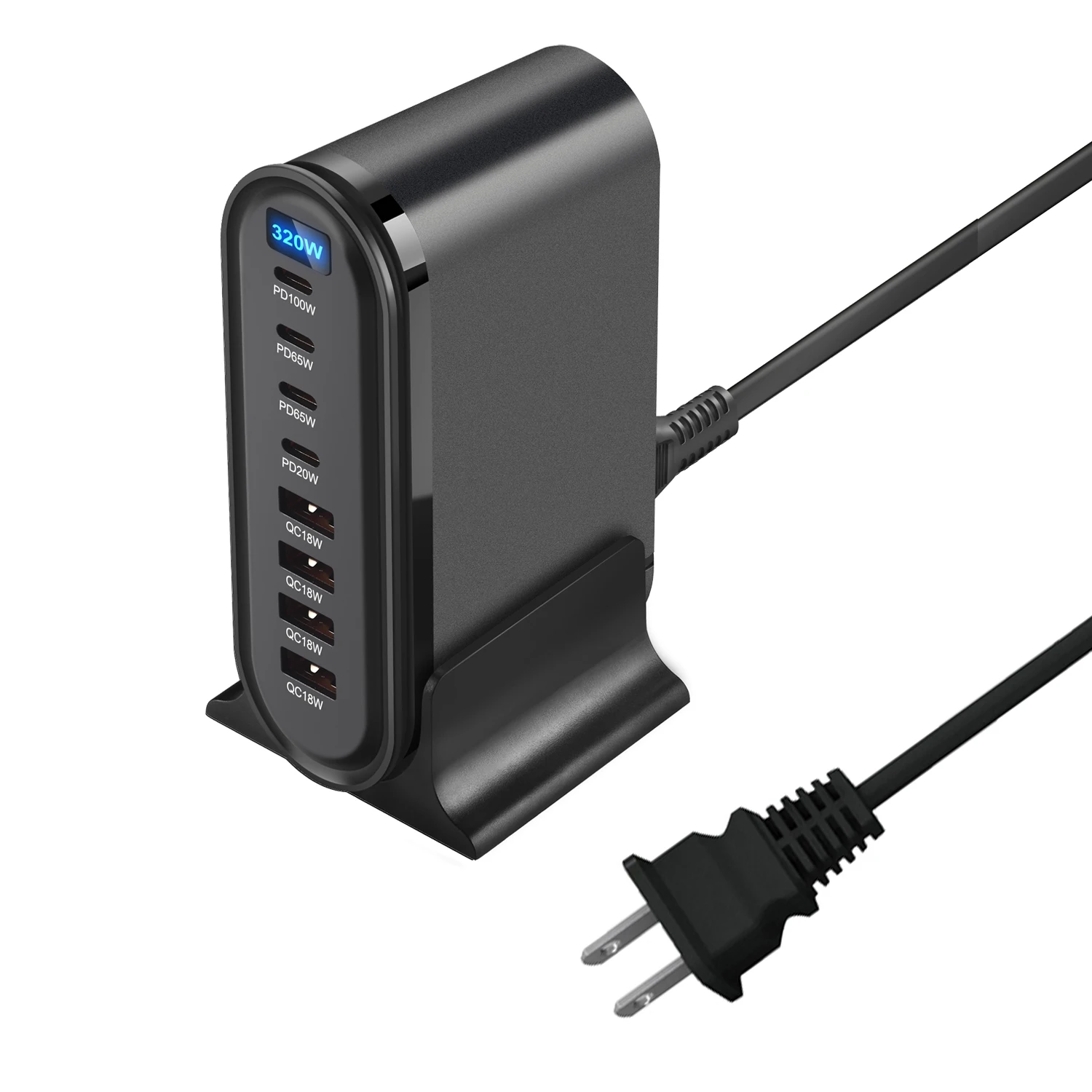

1*Optional Plugs: US/EU/UK/AU
